CP 0112 Light Breakers
The lightest handheld class at 30 to 33 lb. Built for floors, sidewalks, asphalt, and masonry. The silenced CP 0112 S and the extended handle CP 0112 EX cover light trenching.
30 lb class, 45 CFM at 90 PSI
Chicago Pneumatic Breakers and Construction Tools for Southern California and Las Vegas
Authorized Chicago Pneumatic distributor for handheld pneumatic breakers and demolition tools. We order direct through the factory dealer network, without the delays or markups of a third-party reseller. Rugged, forged-steel tools for pavement, asphalt, frozen ground, and masonry, sold and sourced across Los Angeles, Orange County, the Inland Empire, and Las Vegas, and backed by the team that services compressed air systems every day. We sell and source. We don't rent.
Pictured: a Chicago Pneumatic breaker fed by a CPS 185 portable compressor.
The Range
Breakers and Construction Tools
Chicago Pneumatic builds handheld breakers in four weight classes, from a 30 lb chipping tool to a 90 lb paving breaker. Weight and air demand climb together, so the class you pick sets the compressor you need. Tell us the job and we will point you to the right class and shank.
CP 1210 Medium Breakers
The general purpose class for pavement and slab work, running 44 to 55 lb depending on version. Silenced and vibration reduced models are available in 1, 1-1/8, and 1-1/4 inch shanks.
35 lb class, 48 CFM at 90 PSI

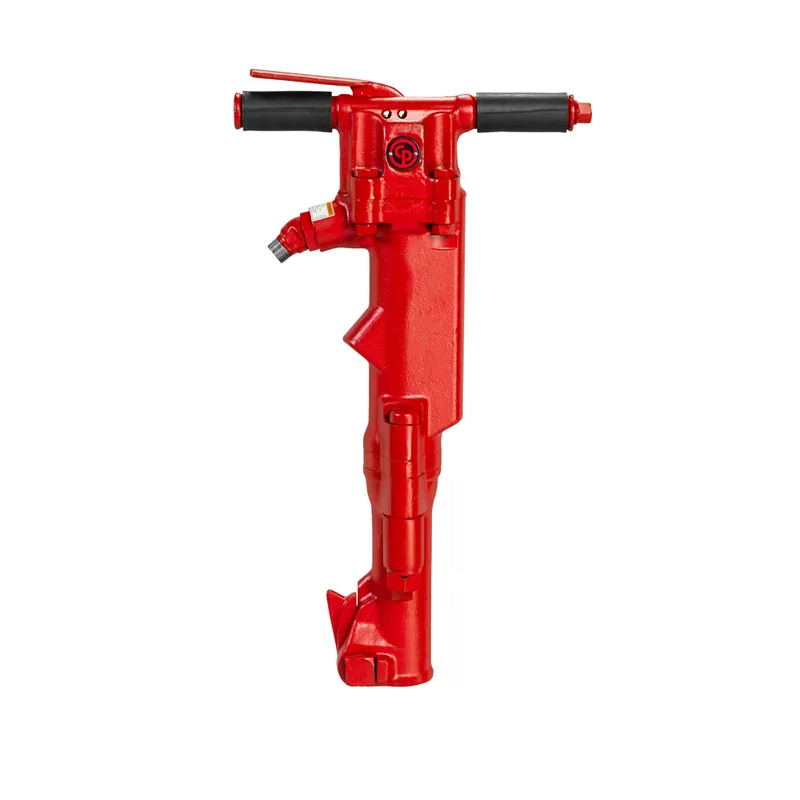

CP 1260 Heavy Breakers
Real weight runs 64 to 75 lb. This is the class for thick concrete and continuous roadwork, where a medium breaker rides on top of the slab instead of cutting it.
60 lb class, 63 CFM at 90 PSI

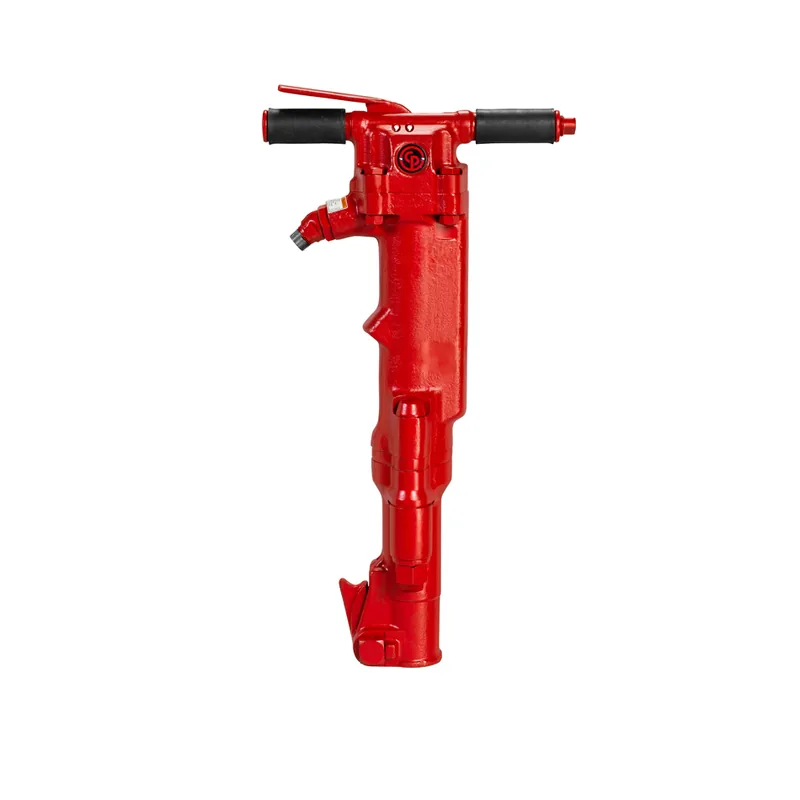

CP 1290 Paving Breakers
The heaviest handheld class at 82 to 96 lb, for reinforced slab, deep pavement, and frozen ground. The CP 1290 SVR adds a vibration reduced handle for full shift use.
90 lb class, 81 CFM at 90 PSI
Beyond breakers, the Chicago Pneumatic construction line covers drills, diggers, rivet busters, and related handheld tools for demolition and jobsite work. Ask us for the current lineup and availability.
Specifications
Breaker specs and part numbers
Every Chicago Pneumatic breaker in the four-bolt range, with shank size, retainer, and Chicago Pneumatic part number. All four classes run on a 3/4 inch NPT air inlet.
| Model | Hex shank | Retainer | Length | Weight | Part no. |
|---|---|---|---|---|---|
| CP 0112: 30 lb class, 45 CFM at 90 PSI | |||||
| CP 0112 | 7/8 x 3-1/4 | Latch | 20 in | 30 lb | 8900 0030 26 |
| CP 0112 | 1 x 4-1/4 | Latch | 20 in | 30 lb | 8900 0030 23 |
| CP 0112 S | 1 x 4-1/4 | Kick Latch | 20 in | 31 lb | 8900 0030 25 |
| CP 0112 EX | 7/8 x 3-1/4 | Latch | 20 in | 30 lb | 8900 0030 27 |
| CP 0112 EX | 1 x 4-1/4 | Latch | 30-3/8 in | 33 lb | 8900 0030 24 |
| CP 1210: 35 lb class, 48 CFM at 90 PSI | |||||
| CP 1210 | 1 x 4-1/4 | Latch | 21-1/8 in | 44 lb | 8900 0030 01 |
| CP 1210 S | 1 x 4-1/4 | Latch | 21-1/8 in | 45 lb | 8900 0030 03 |
| CP 1210 S | 1-1/8 x 6 | Latch | 23 in | 46 lb | 8900 0030 07 |
| CP 1210 S | 1-1/4 x 6 | Latch | 23 in | 46 lb | 8900 0030 09 |

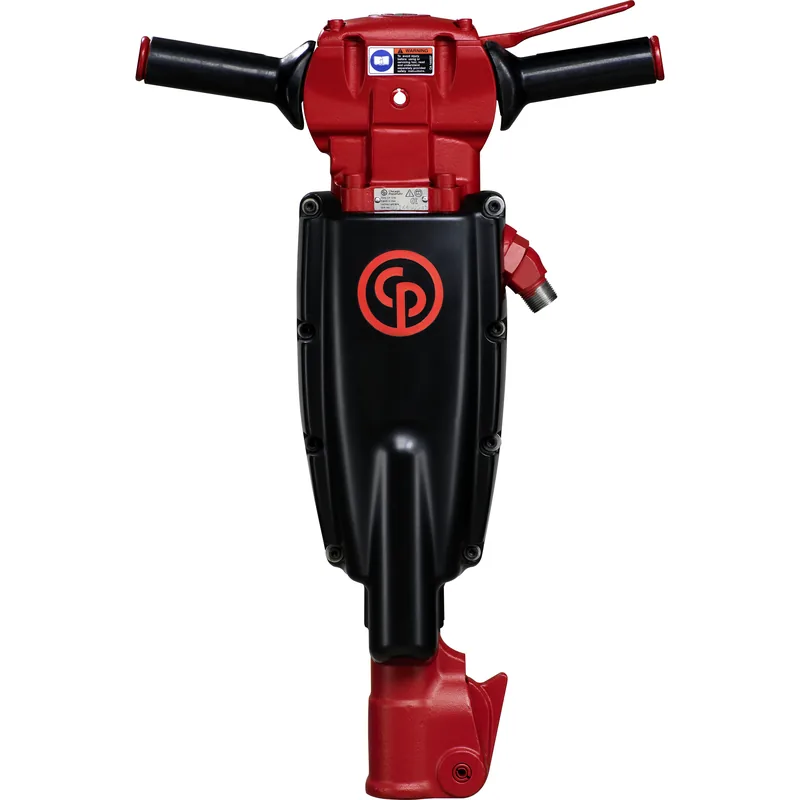

| CP 1210 SVR | 1 x 4-1/4 | Latch | 23-1/2 in | 51 lb | 8900 0030 05 |
| CP 1210 SVR | 1-1/8 x 6 | Latch | 25-1/2 in | 55 lb | 8900 0030 08 |
| CP 1210 SVR | 1-1/4 x 6 | Latch | 25-1/2 in | 55 lb | 8900 0030 10 |
| CP 1260: 60 lb class, 63 CFM at 90 PSI | |||||
| CP 1260 | 1-1/8 x 6 | Latch | 27 in | 64 lb | 8900 0030 29 |
| CP 1260 | 1-1/4 x 6 | Latch | 27 in | 64 lb | 8900 0030 28 |
| CP 1260 S | 1-1/8 x 6 | Latch | 27 in | 65 lb | 8900 0030 31 |
| CP 1260 S | 1-1/4 x 6 | Latch | 27 in | 65 lb | 8900 0030 30 |
| CP 1260 SVR | 1-1/8 x 6 | Latch | 29 in | 75 lb | 8900 0030 33 |
| CP 1260 SVR | 1-1/4 x 6 | Latch | 29 in | 75 lb | 8900 0030 32 |
| CP 1290: 90 lb class, 81 CFM at 90 PSI | |||||
| CP 1290 | 1-1/8 x 6 | Latch | 29 in | 82 lb | 8900 0030 38 |
| CP 1290 | 1-1/4 x 6 | Latch | 29 in | 82 lb | 8900 0030 37 |
| CP 1290 S | 1-1/8 x 6 | Latch | 29 in | 83 lb | 8900 0030 40 |
| CP 1290 S | 1-1/4 x 6 | Latch | 29 in | 83 lb | 8900 0030 39 |
| CP 1290 SVR | 1-1/8 x 6 | Latch | 31 in | 96 lb | 8900 0030 42 |
| CP 1290 SVR | 1-1/4 x 6 | Latch | 31 in | 96 lb | 8900 0030 41 |
Model suffixes: S is a silenced model. SVR is silenced with a vibration reduced handle. EX has an extended handle for trench work. Weight class is nominal, so a 90 lb class CP 1290 SVR actually weighs 96 lb. Source: Chicago Pneumatic handheld breakers datasheet.
The CP 1230 and CP 1240 have been replaced by the CP 1260 and CP 1290. If you are matching an older tool, we can confirm the current equivalent and the right shank size.
Stock and lead time: every part number above is orderable direct through our Chicago Pneumatic account. Tell us the part number and your job date and we will confirm current stock and lead time before you commit to it.
Air Supply
What size air compressor does a breaker need?
One 90 lb CP 1290 needs 81 CFM at 90 PSI, so the smallest portable that runs it delivers 95 CFM. Every breaker on this page will run on a single CPS 110 or T110. Undersized air is the most common reason a breaker underperforms on site.
| Breaker | Air required at 90 PSI | Smallest portable that runs one |
|---|---|---|
| CP 0112 (30 lb class) | 45 CFM | CPS 110 or T110 (95 CFM) |
| CP 1210 (35 lb class) | 48 CFM | CPS 110 or T110 (95 CFM) |
| CP 1260 (60 lb class) | 63 CFM | CPS 110 or T110 (95 CFM) |
| CP 1290 (90 lb class) | 81 CFM | CPS 110 or T110 (95 CFM) |
Running more than one tool? Do not just add these numbers up. Load factor, duty cycle, leaks, and pressure drop all change the answer, and simple addition will usually get you the wrong machine. Our air compressor sizing guide walks through the method properly, including how much air your system never sees.
One jobsite factor worth knowing even for a single tool: the US Department of Energy notes that every 2 PSI of unnecessary pressure drop cuts system capacity by roughly 1 percent. On site that usually means hose that is too long or too narrow, so the tool starves even when the compressor is rated correctly.
We sell the compressors as well as the tools, so we can size the pair together. See portable diesel air compressors.
Compliance
What does OSHA require when breaking concrete?
Breaking concrete with a handheld breaker falls under the OSHA respirable crystalline silica standard for construction, 29 CFR 1926.1153. Table 1 of that standard names jackhammers and handheld powered chipping tools directly and requires a dust control on the tool. That affects what you buy, not just how you work.
Dust control is required, and there are two options
Table 1 allows either a water delivery system supplying a continuous stream or spray of water at the point of impact, or a commercially available shroud with dust collection. Chicago Pneumatic makes a 36 inch retrofit dust suppression spray kit that fits any size CP breaker, rivet buster, or chipping hammer. It runs a 6 GPH atomized mist nozzle covering an 80 degree cone at 40 PSI and connects to a garden hose, so any water source on site will feed it. Ask us to quote it with the tool.
Respirator requirements depend on hours and location
With the dust control in place, Table 1 requires no respirator for outdoor work of four hours or less per shift. Beyond four hours outdoors, or for any work indoors or in an enclosed area, an APF 10 respirator is required. Confirm the current requirement for your site before relying on this.
A retainer is not optional
OSHA requires a safety clip or retainer on pneumatic tools to stop the steel being ejected during operation. Every breaker in the table above ships with a latch or kick latch retainer. Replacement safety clips are part number 9246 0204 83.
Air hose has its own rules
A short wire or positive locking device must tie the hose to the tool. Chicago Pneumatic whip check cables are part number 9246 0204 86 for hose to tool and 9246 0204 85 for hose to hose. Where hose diameter exceeds 1/2 inch, OSHA also requires a safety excess flow valve at the air supply.
Sources: OSHA respirable crystalline silica standard for construction and OSHA 3080, Hand and Power Tools. California runs its own state plan through Cal/OSHA, which enforces standards at least as effective as the federal requirements and not always identical to them. Check the Cal/OSHA requirement for your site. This section is a summary to help you spec the right tool and accessories, not a compliance document.
Built to Last
Why These Tools Hold Up
Demolition tools take a beating. Chicago Pneumatic breakers are built to keep working and to keep the operator comfortable through a full shift.
Forged Steel Construction
Alloy steel forgings and a four-bolt backhead design stand up to continuous, rugged use.
Vibration-Reduced Handles
Reduced-vibration handles keep operators working longer with less fatigue and better control.
Integral Oiler
Built-in lubrication keeps the tool running smoothly and cuts down on maintenance stops.
Jobsite Applications
Floor and pavement demolition, asphalt, bridge maintenance, frozen ground, and masonry walls.
Cost of Ownership
When does owning a breaker make sense?
Own the tool once it is on more than one job. A single short job is what a rental yard is for. Past that, the costs that decide it are the ones that never appear on the daily rate.
What the daily rate leaves out
Delivery and pickup on every ticket. Damage waiver or insurance. Fuel and cleaning charges. Late return penalties when a pour slips. The clock keeps running through weekends, rain days, and inspection delays, whether the tool is cutting concrete or sitting on the trailer.
What ownership changes
The breaker is on your truck when the schedule moves up. No return deadline, no reservation, and no branch calling to say the 90 lb class went out this morning. We can source parts through the same Chicago Pneumatic account, so a tool in regular rotation stays a repairable asset instead of a recurring line item.
Budget for the steel, not just the tool
Moil points, chisels, spades, and asphalt cutters wear out, and they are the real running cost of owning a breaker. Retainers and safety clips are consumable too. We quote the tool, the shank size that matches it, and the steels together, so the first job is not held up waiting on a point.
We do not publish a rental comparison table. Rates move by yard, by branch, and by week, and a number we made up would be wrong by the time you read it. Tell us what you pay now for a 90 lb breaker and we will quote the purchase against it.
FAQ
Common Questions
-
Which breaker weight class do I need?
Lighter breakers, like the 30 to 35 lb CP 0112 class, suit floors, sidewalks, asphalt, and masonry. Heavier concrete, roadwork, and continuous demolition call for heavier paving breakers. Tell us the job and we will match the weight and shank.
-
What is the difference between the CP 0112 and CP 0112 S?
The CP 0112 is the standard light breaker. The CP 0112 S is the silenced version. There is also a CP 0112 EX with an extended handle for light trenching.
-
How much air does a handheld breaker need?
Between 45 and 81 CFM at 90 PSI, depending on class. The 30 lb CP 0112 uses 45 CFM, the 35 lb CP 1210 uses 48 CFM, the 60 lb CP 1260 uses 63 CFM, and the 90 lb CP 1290 uses 81 CFM. Match the breaker to a compressor that delivers enough free air at that pressure. See air compressor sizing for air tools for the method, or we can spec the breaker and the compressor together.
-
What can these tools break?
Floors and pavement, asphalt, bridge decks, frozen ground, and masonry walls. They are built for light to medium demolition and plant maintenance work.
-
What does OSHA require when breaking concrete?
A dust control on the tool. The OSHA respirable crystalline silica standard for construction, 29 CFR 1926.1153, names jackhammers and handheld powered chipping tools in Table 1 and requires either a water delivery system at the point of impact or a shroud with dust collection. Chicago Pneumatic makes a retrofit dust suppression spray kit that fits any size CP breaker. Respirator requirements depend on hours worked and whether the work is indoors. California is a Cal/OSHA state, so confirm the requirement for your site.
-
What is the difference between an S and an SVR breaker?
An S model is silenced. An SVR model is silenced and adds a vibration reduced handle, so the vibration dampening is on top of the silencing rather than instead of it. SVR models weigh more as a result. A 90 lb class CP 1290 is 82 lb, the CP 1290 S is 83 lb, and the CP 1290 SVR is 96 lb.
-
I have a CP 1230 or CP 1240. What replaced it?
The CP 1260 replaced the CP 1230 and the CP 1290 replaced the CP 1240. Tell us the shank size you are running and we will confirm the current equivalent so your existing steels still fit.
-
Do you sell breakers and construction tools, or rent them?
We sell and source them as an authorized Chicago Pneumatic distributor, ordering through the factory dealer network. You buy and own the tool. We do not rent.
