Toolytics is an authorized Chicago Pneumatic dealer and distributor supplying industrial pneumatic tools to production, maintenance, and assembly operations across Los Angeles, Orange County, the Inland Empire, and the Las Vegas metro. These are industrial-grade tools for the plant floor, not consumer or rental equipment. Tell us the tool or the application and we will source it and help you spec it right. We also supply portable and construction equipment and stationary air compressors and air treatment.
Start with the work, not the catalog. Each path jumps to the matching tool category below.
Impact wrenches, ratchets, and controlled-torque options.
Pistol, straight, and angle drills for industrial work.
Die grinders, angle grinders, sanders, and polishers.
Chipping hammers, needle scalers, and percussive tools.
The full Chicago Pneumatic industrial range for production and maintenance environments. We source what your operation runs and help you choose the right model. Contact us for availability and pricing.

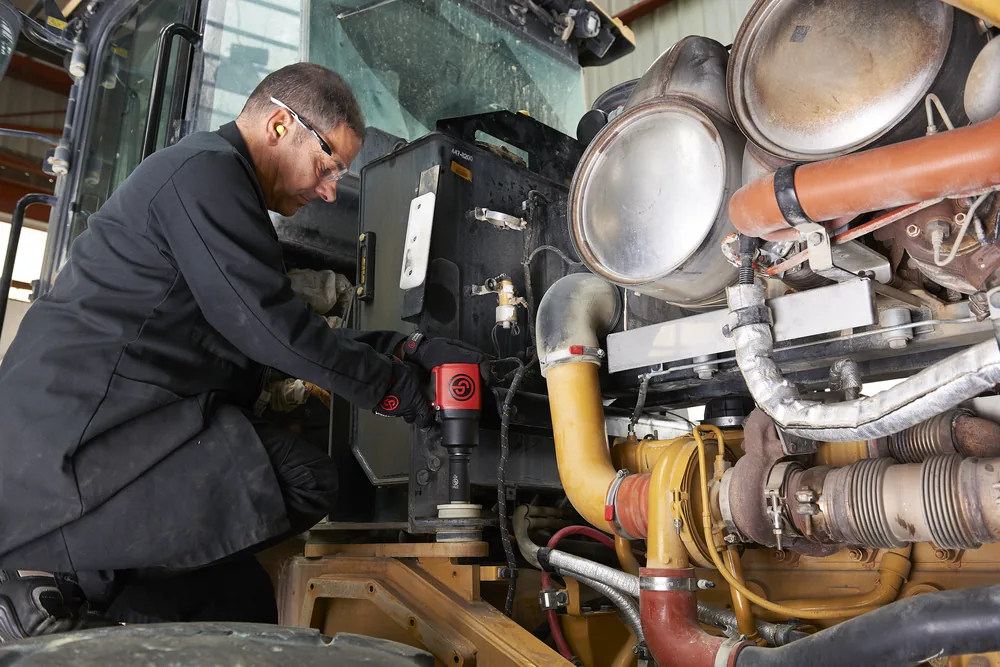

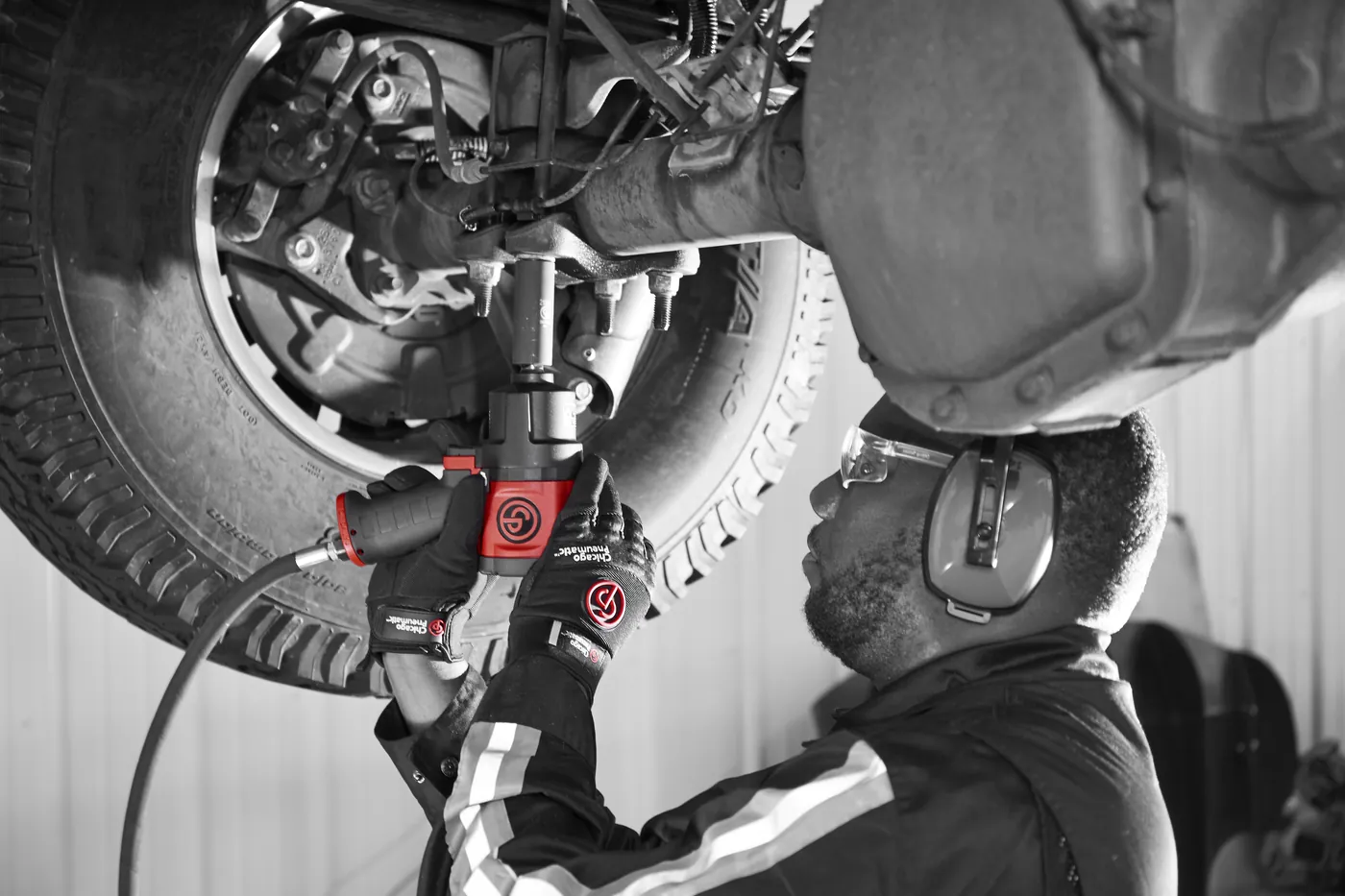

High-torque air impact wrenches and ratchets for assembly, maintenance, and heavy fastening on the production floor.

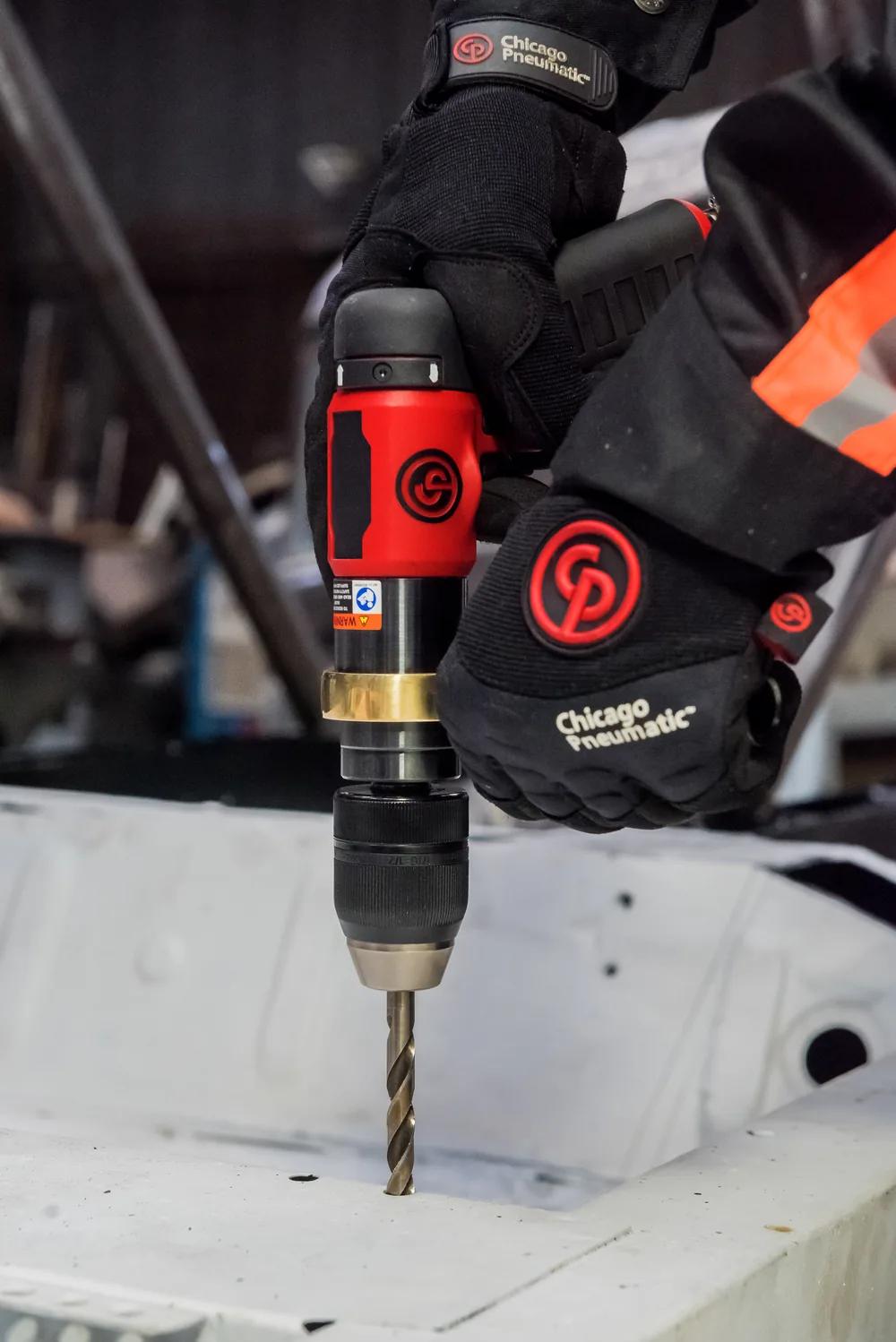

Pneumatic drills built for continuous-duty drilling in fabrication and maintenance work, in pistol, straight and angle configurations.

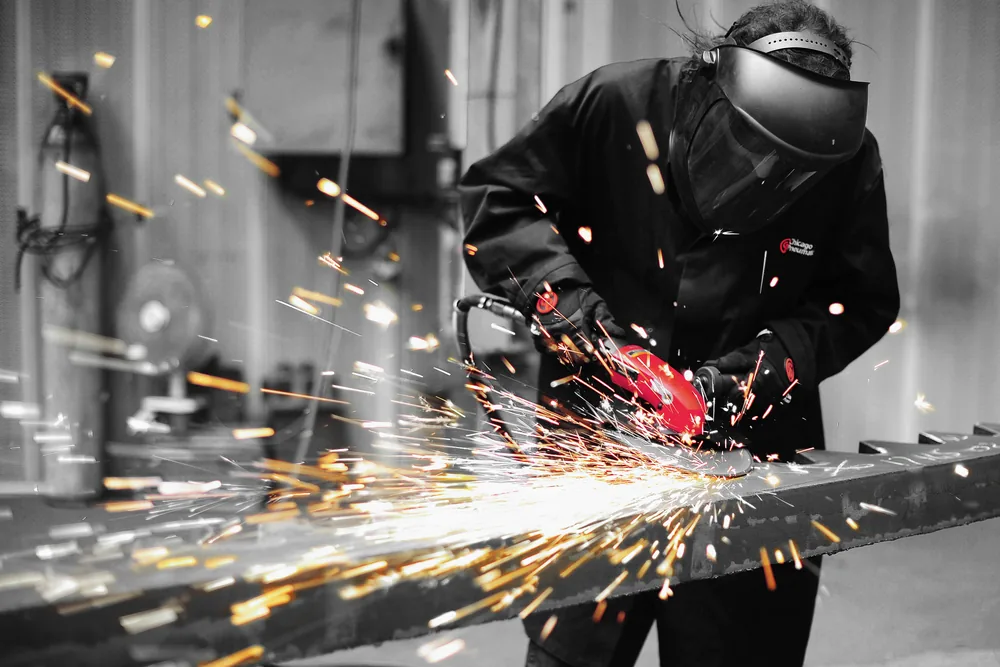

Die grinders, angle grinders, sanders, and polishers for material removal, weld dressing, and surface finishing.

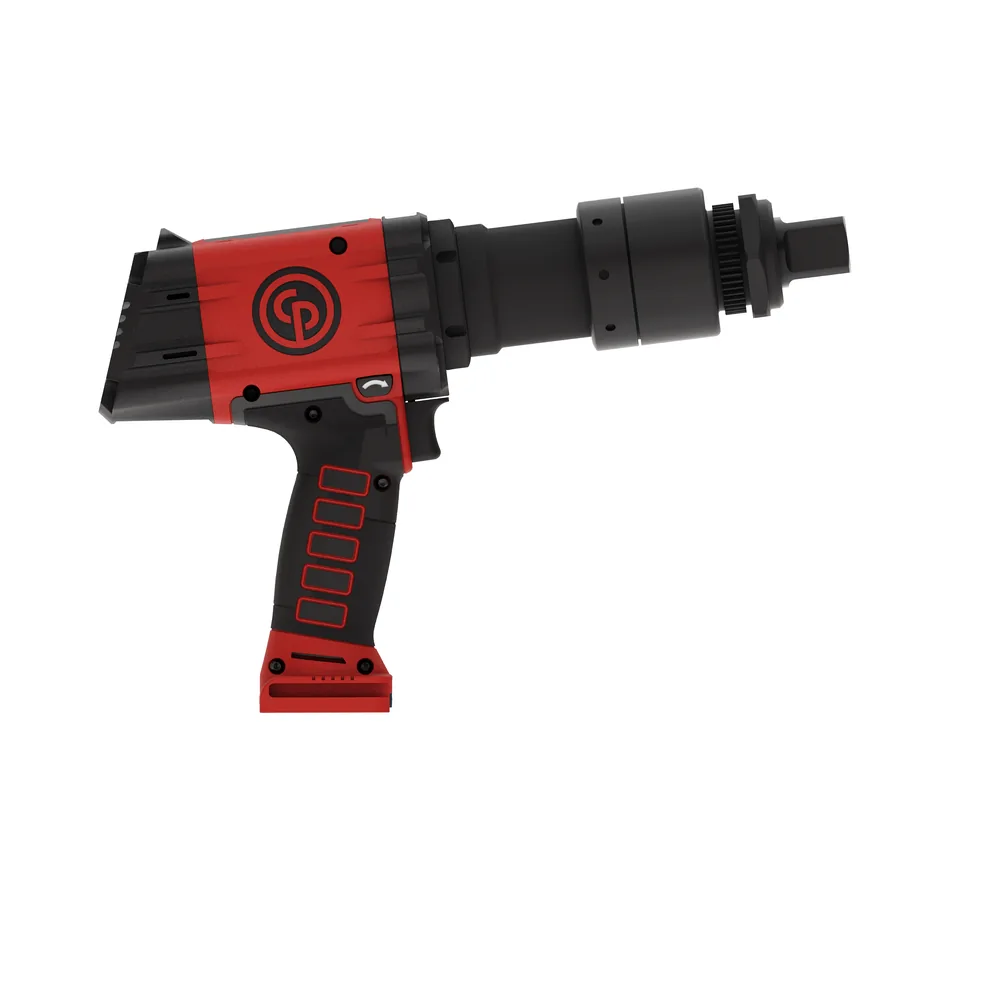

Air screwdrivers and nutrunners for controlled-torque assembly, plus the CP89 electronic and CP86 battery torque wrench series where fastening has to be documented.

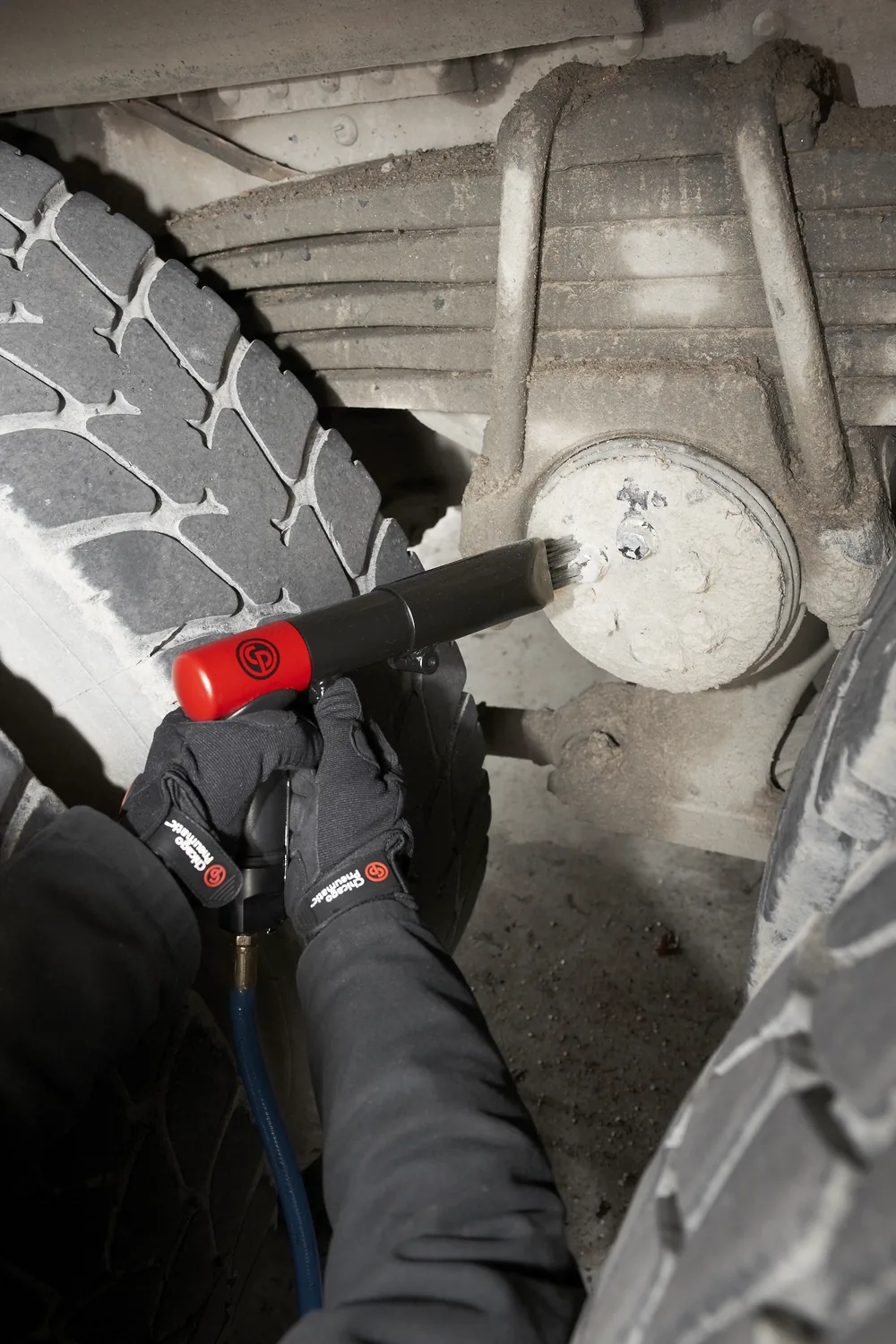

Percussive tools for scaling, deburring, weld cleaning, and surface prep in industrial maintenance.
Published air consumption is only part of the calculation. Simultaneous use, duty cycle, hose length, hose diameter, couplings, regulator sizing, and pressure drop all affect actual performance.
Check My Available Air SupplyOften manageable on existing systems when hose and regulator sizing are correct.
Performance depends heavily on available pressure at the tool, not only compressor rating.
Continuous duty can expose undersized piping, regulators, and receiver capacity.
May require a full system review of compressor capacity, distribution, and point-of-use equipment.
Anyone can ship you a tool. The difference is getting the right one for the job and the air behind it. That is where a distributor who also lives in compressed air earns its keep.
We also service the compressors and air systems that feed these tools, so one call covers the whole loop.
We match the tool to the application by torque, duty cycle, and ergonomics for the people running it every shift.
A tool is only as good as the air behind it. We check CFM, pressure, hose, and drop sizing so the tool performs to spec.
Genuine Chicago Pneumatic tools sourced direct, with model selection and replacement help. No gray-market guesswork.
Send the current model, serial number, part number when available, and a clear photo of the tool or nameplate.
Representative 1/2 inch models, not the complete range. Working torque, forward and max torque, reverse figures come from the current CP General Industry catalog, rated at 90 PSI through a 3/8 inch hose. Final selection should use working torque, not maximum reverse torque alone. Full range in the selection center below.
Compact 1/2 in industrial impact wrench
| Working, fwd | 25.1–165 ft.lb |
|---|---|
| Max, rev | 221 ft.lb |
| Air @ 90 PSI | 16 cfm |
| Weight | 2.49 lb |

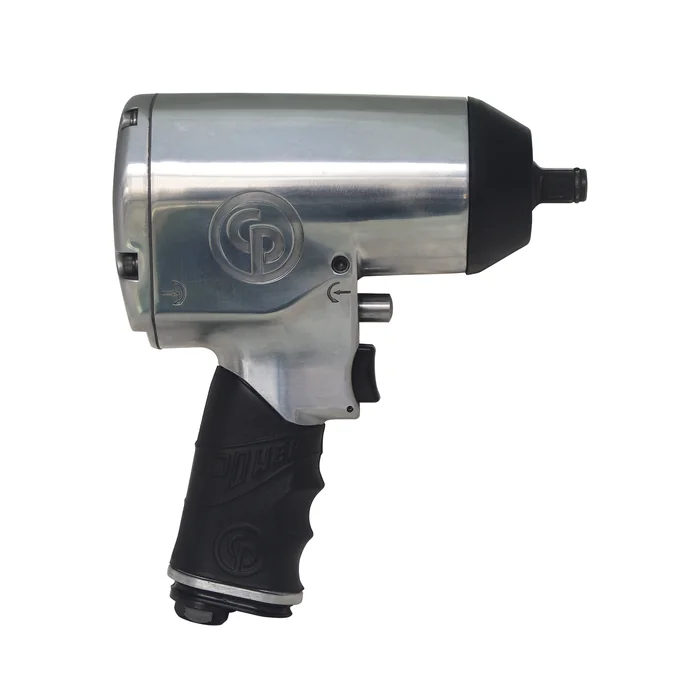

1/2 in industrial impact wrench, twin hammer
| Working, fwd | 50.2–450 ft.lb |
|---|---|
| Max, rev | 610 ft.lb |
| Air @ 90 PSI | 22 cfm |
| Weight | 5.51 lb |
1/2 in industrial impact wrench
| Working, fwd | 70.1–553 ft.lb |
|---|---|
| Max, rev | 959 ft.lb |
| Air @ 90 PSI | 25 cfm |
| Weight | 4.65 lb |
Manufacturer data interpreted around the application and the compressed air system behind it.
The usable fastening range and the preferred selection figure when published.
Peak removal capability, not a controlled tightening specification.
Consumption while the tool is doing work. Do not mix it with average air ratings.
A fastener and joint target, not automatically the required tool output.
14 representative models
| Model | Output drive | Working torque, forward (ft.lb) | Max torque, reverse (ft.lb) | Weight (lb) | Air at 90 PSI (cfm) |
|---|---|---|---|---|---|
| CP721 | 3/8 in | 5.2–50.2 | 75 | 2.65 | 10 |

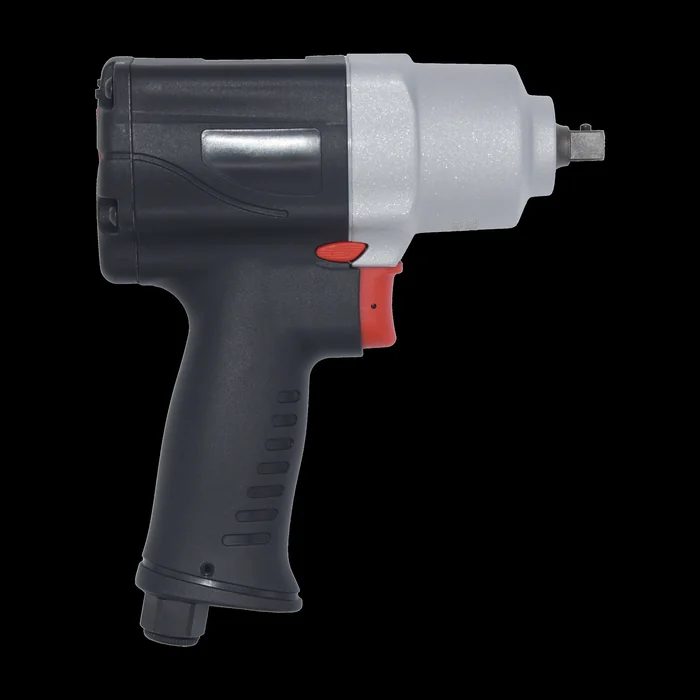

| CP7729 | 3/8 in | 50.2–300 | 415 | 2.76 | 20 |
| CP7737 | 1/2 in | 25.1–165 | 221 | 2.49 | 16 |
| CP749 | 1/2 in | 50.2–450 | 610 | 5.51 | 22 |
| CP7748-P | 1/2 in | 70.1–553 | 959 | 4.65 | 25 |
| CP9561 | 3/4 in | 148–701 | 922 | 11.2 | 30 |
| CP8272-P | 3/4 in | 184–922 | 1220 | 7.28 | 38 |
| CP7769-P | 3/4 in | 300–1,080 | 1440 | 6.94 | 31 |

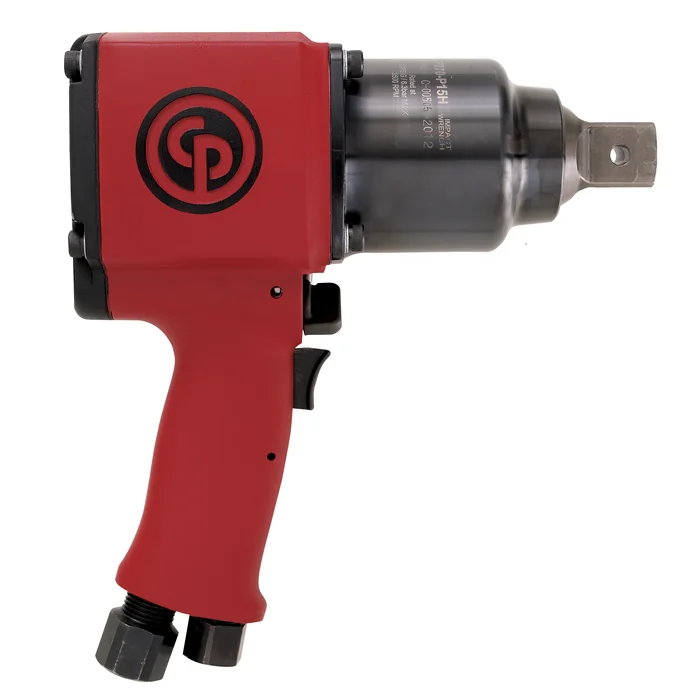

| CP6070-P15H | 1 in | 199–900 | 1100 | 11.9 | 52.9 |
| CP7783 | 1 in | 413–1,250 | 1770 | 18.5 | 40.4 |
| CP0611-D28H | 1 in | 900–1,800 | 2800 | 22.9 | 68 |
| CP6930-D35 | 1-1/2 in | 443–1,950 | 2880 | 31.6 | 64 |

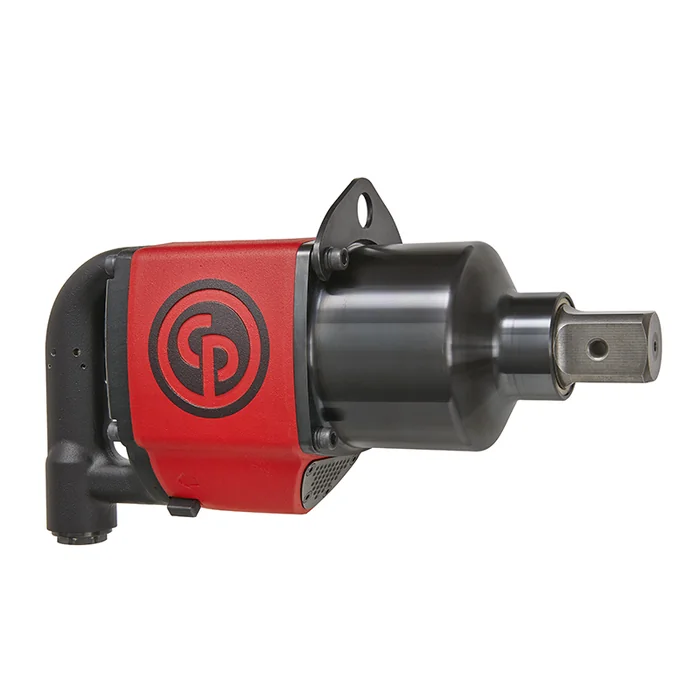

| CP6135-D80 | 1-1/2 in | 740–4,055 | 5900 | 35.2 | 84.5 |

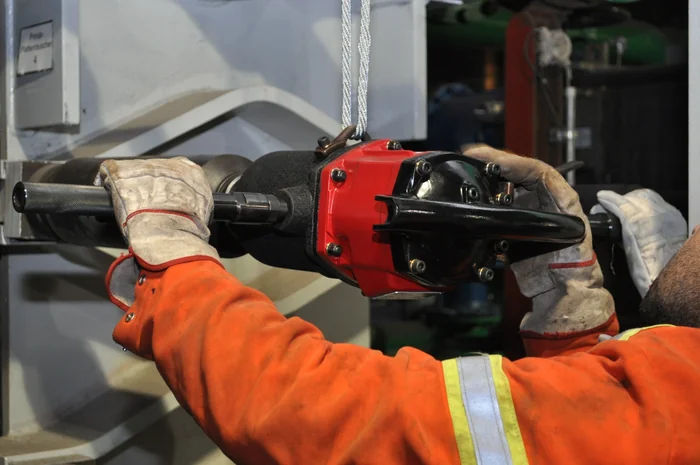

| CP6130-T70 | 1-1/2 in | 2,430–5,240 | 9220 | 72.7 | 67.3 |
| Tool type | Air at 90 PSI (cfm) | Typical | Primary system concern | Models referenced |
|---|---|---|---|---|
| Percussive tools (chipping, scaling, needle) | 3 to 28 | 6.4 | Hose length and coupling restriction | 32 |
| Ratchet wrenches | 8.7 to 17 | 14 | Hose and regulator sizing | 11 |
| Sanders and polishers | 2.5 to 80 | 17 | Continuous duty and pressure drop | 115 |
| Screwdrivers and assembly tools | 8.5 to 30 | 19.5 | Stable pressure for repeatable torque | 8 |
| Die grinders | 2.1 to 86 | 21 | Continuous airflow | 59 |
| Drills | 3 to 80 | 23 | Duty cycle and simultaneous use | 19 |
| Impact wrenches | 10 to 84.5 | 31 | Pressure at the point of use | 51 |
| Angle grinders | 8 to 110 | 63 | Compressor and distribution capacity | 59 |
| Bolt grade | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1-1/4" | 1-1/2" |
|---|---|---|---|---|---|---|---|
| Grade 5 | 28 | 55 | 97 | 155 | 230 | 480 | 860 |
| Grade 8 | 70 | 140 | 250 | 405 | 600 | 1,080 | 1,950 |
| ASTM A574 | 99 | 198 | 350 | 566 | 848 | 1,750 | 3,125 |
| ASTM A325 | - | 200 | 355 | 570 | 850 | 1,495 | 2,600 |
| ASTM A490 | - | 250 | 435 | 715 | 1,070 | 2,125 | 3,700 |
| Property class | M10 | M12 | M16 | M20 | M24 | M30 | M36 |
|---|---|---|---|---|---|---|---|
| 8.8 | 47 | 81 | 197 | 385 | 665 | 1,310 | 2,280 |
| 10.9 | 65 | 114 | 277 | 541 | 935 | 1,840 | 3,210 |
| 12.9 | 79 | 136 | 333 | 649 | 1,120 | 2,210 | 3,850 |
Enter the manufacturer’s air at load figure for one tool, then account for how many tools may run together and for how long.
This is a screening estimate, not compressor sizing. Receiver storage, pressure drop, hose and coupling restrictions, other plant demand, and compressor duty still need review. See air compressor sizing for air tools for the full method.
Request a point-of-use air reviewSend the model, serial number, and a nameplate photo when available. Toolytics can help locate or confirm:
Open a category to review the additional tool families we can source, or send us the model number and we will confirm sourcing and lead time for your facility.
Are you a Chicago Pneumatic dealer in Los Angeles?
Yes. Toolytics is an authorized Chicago Pneumatic dealer and distributor serving Los Angeles County, Orange County, Riverside County, San Bernardino County, and the Las Vegas metro. We supply the industrial air tool line and we service the compressed air systems that run it.
Do you sell industrial air tools to shops, or is this consumer tools?
These are industrial-grade Chicago Pneumatic tools for production, maintenance, and assembly operations. We are an authorized distributor, not a consumer retailer or a rental house.
Can you help me pick the right tool for my application?
Yes. We help match the tool to the job by torque, duty cycle, ergonomics, and air consumption, and we confirm your air supply can feed it. That is the part a price-only online listing skips.
Do you carry Chicago Pneumatic assembly tools and nutrunners?
Yes. We source the full Chicago Pneumatic industrial line, including impact wrenches, ratchets, drills, grinders, and sanders, along with assembly tools like air screwdrivers, nutrunners, and the CP89 electronic and CP86 battery torque wrench series.
What areas do you supply?
We supply industrial tools across Southern California, including Los Angeles, Orange County, and the Inland Empire, and into the Las Vegas metro. Call (844) 310-8665 to confirm sourcing and delivery for your facility.
Can you also service the compressor that runs these tools?
Yes. We service compressed air systems every day, so the same team that sources your tools can keep the air behind them running. One vendor for the tools and the air that powers them.
The same Chicago Pneumatic relationship also covers stationary air compressors and portable construction equipment. We supply, install, and service both across Southern California and Las Vegas.
Tell us the tool, the model, or the application and we will get back to you within one business day with sourcing, pricing, and availability. Call (844) 310-8665 to reach us directly.
